Progressive Growth

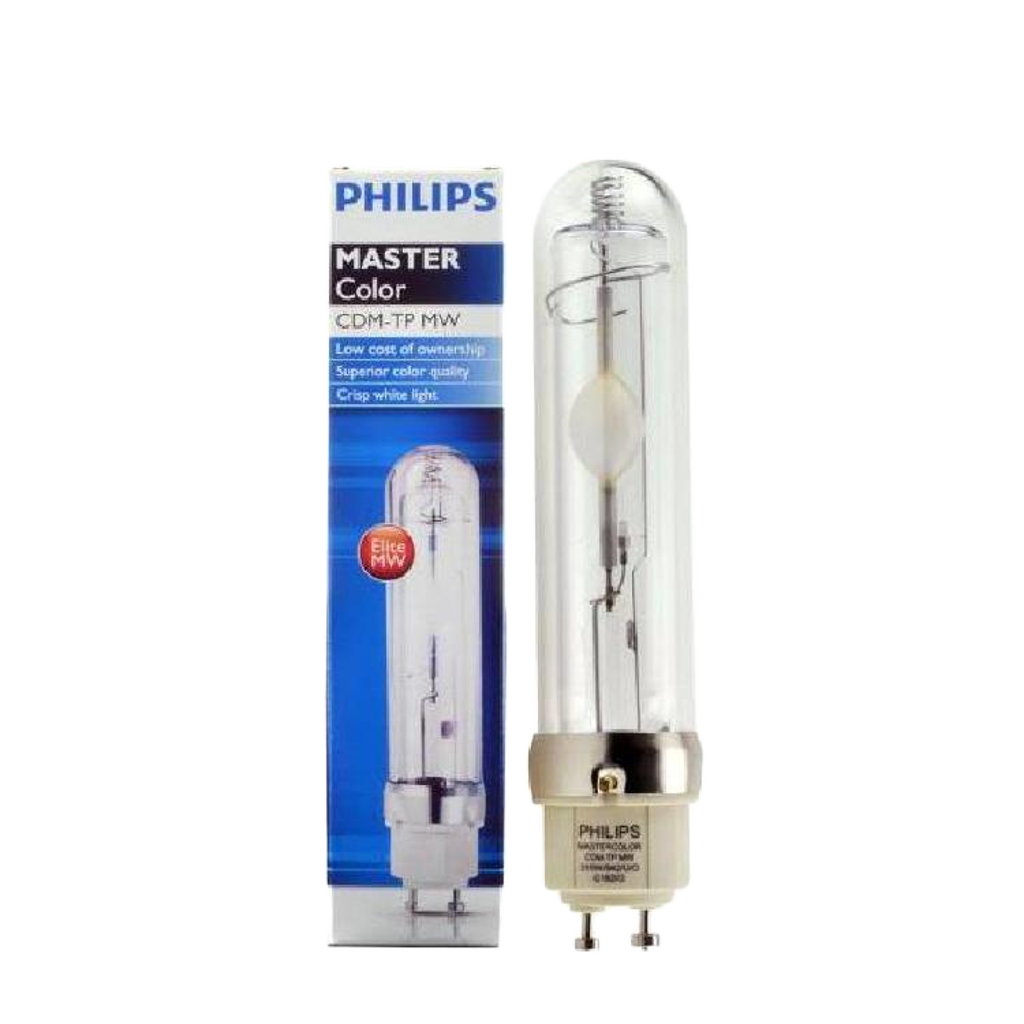

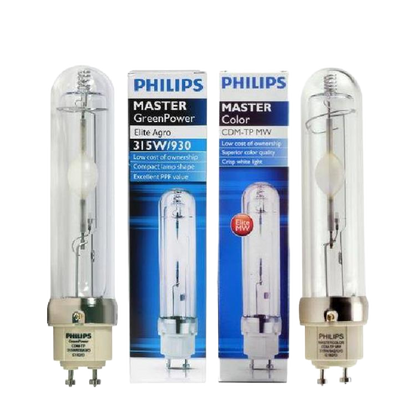

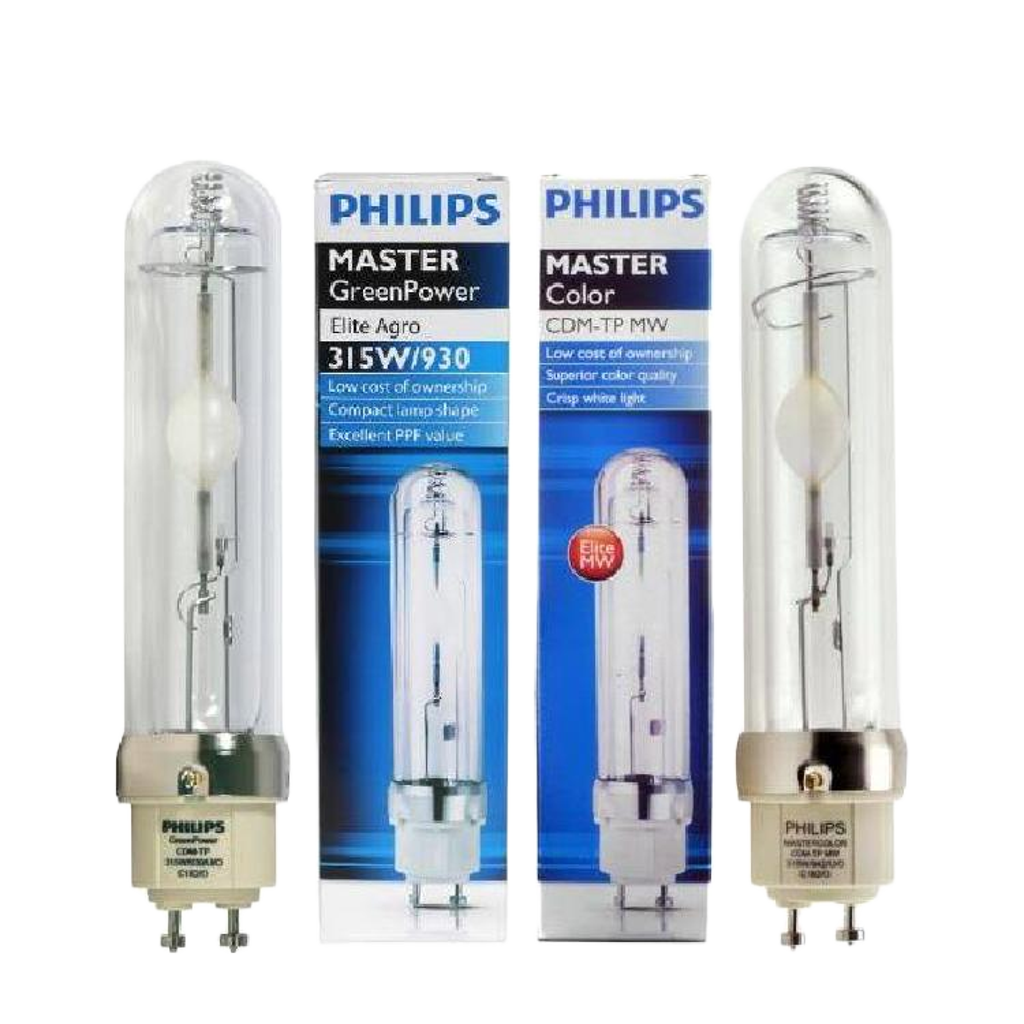

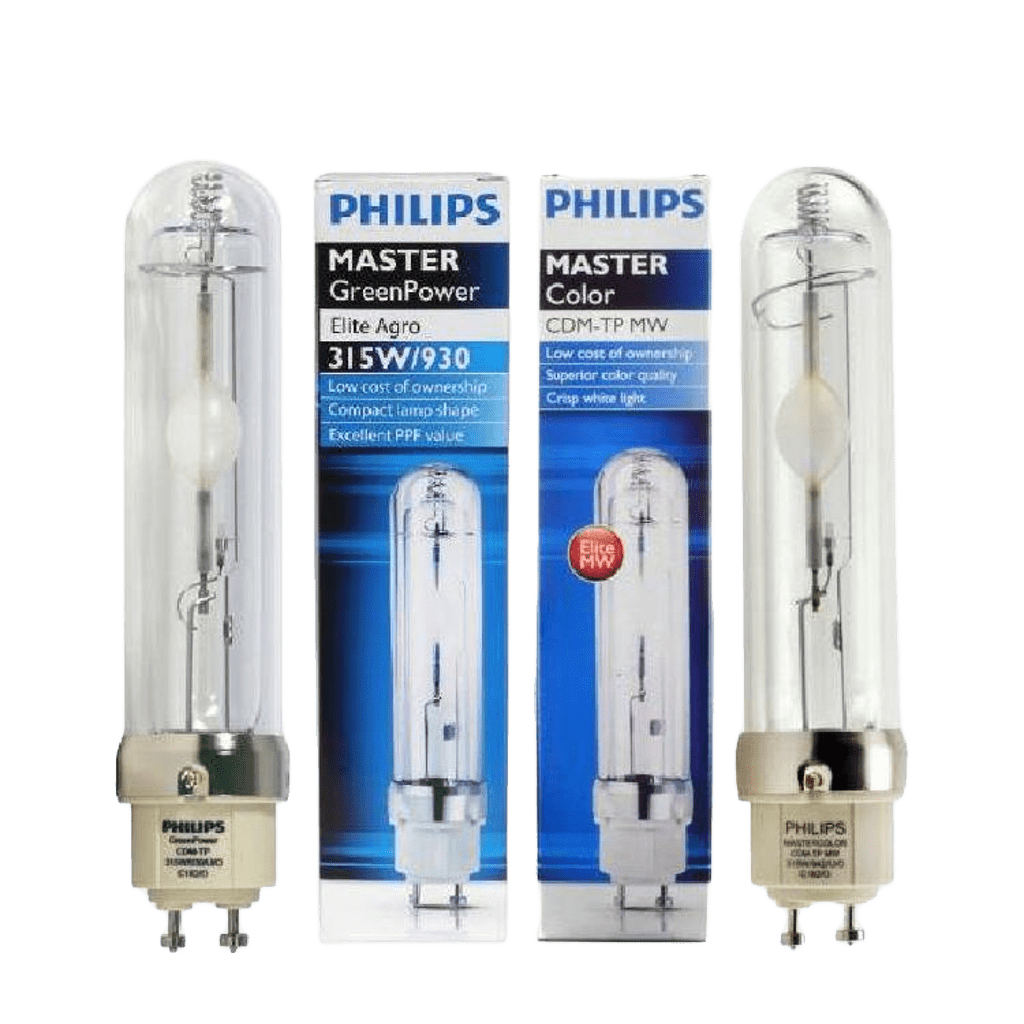

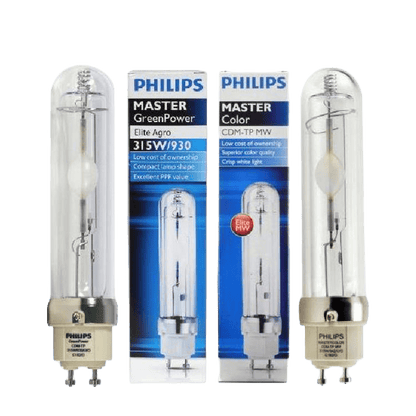

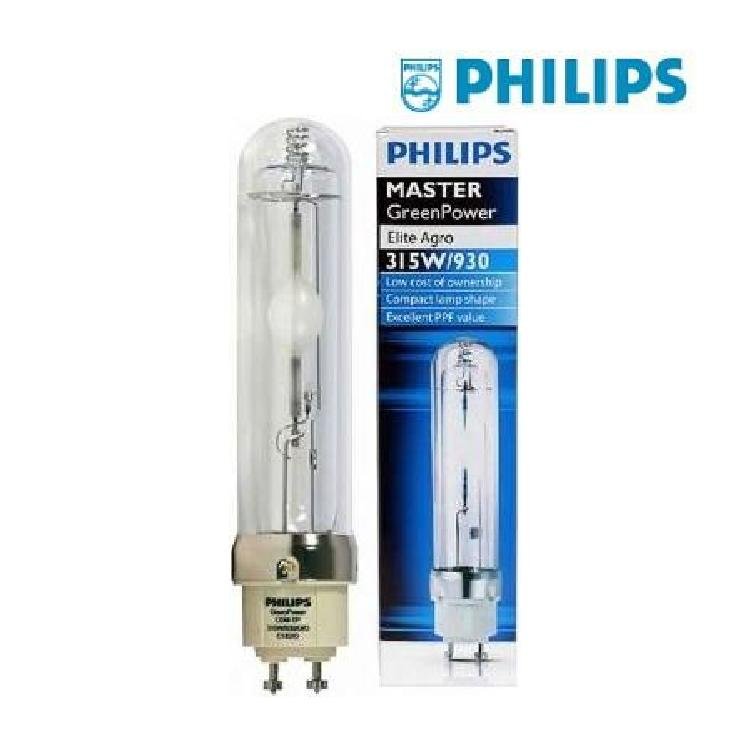

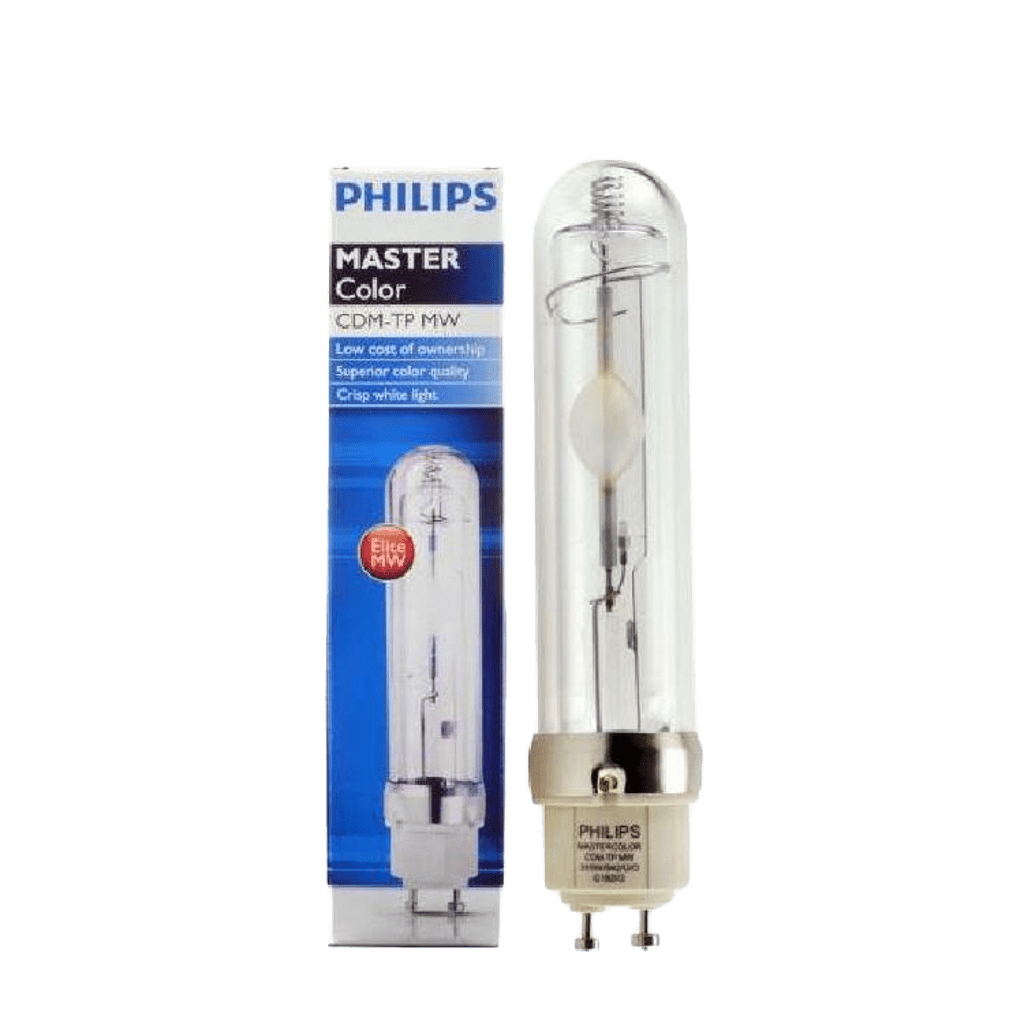

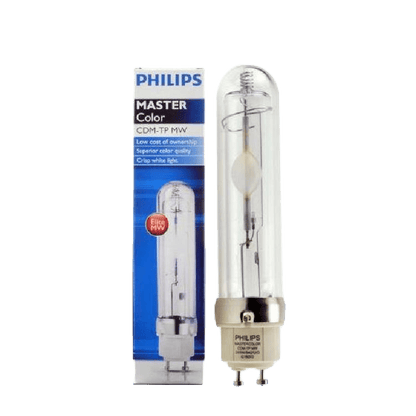

Philips 315W CMH Lamp

Philips 315W CMH Lamp

Save $32.99
Regular price $142.95 CAD Price inclusive of all taxes
Regular price $142.95 CAD Sale price $107.21 CAD
save 25%
Sale Sold out
Shipping calculated at checkout.

color-temp
View full details

Philips 315W CMH Lamp produce very high quality light for the plants. They have a very high CRI, which means the light they produce mimics the quality of sunlight. A great deal of that light produced is in the PAR spectrum.

Since CMH grow lights produce a full spectrum of light, it will produce some UltraViolet and InfraRed light. These parts of the spectrum are very helpful for warding off pathogens like mold and mildew, and even some pests. Plants grow more healthfully under CMH grow lights than LED grow lights.

And one more thing about CMH light spectrum, since it’s a complete spectrum. You’ll be able to see the plants clearly, without using color adjusting grow room glasses. But if you’re growing with LED grow lights, you’ll probably benefit from using grow….
On the other hand, Light Emitting Diodes (LEDs) produce light in a specific, and narrow, wavelength. The hundreds or thousands of diodes are not replaceable.

Philips 315W CMH Lamp

Specifications

General information
Cap-Base
PGZX18.  [ PGZX18.]
Operating Position
UNIVERSAL  [ Any or Universal (U)]
Main Application
Agro
Life To 10% Failures (Nom)
12000 h
Life to 50% Failures (Nom)
20000 h
ANSI Code HID
C182/O
Features
Protected (P)
Light technical
Color Code
-  [ Not Specified]
Luminous Flux (Rated) (Min)
30000 lm
Luminous Flux (Rated) (Nom)
33000 lm
Color Designation
-  [ Not Specified]
Photosynthetic Photon Flux (PPF)
599 µmol/s
Chromaticity Coordinate X (Nom)
0.41
Chromaticity Coordinate Y (Nom)
0.365
Correlated Color Temperature (Nom)
3100 K
Luminous Efficacy (Rated) (Min)
95 lm/W
Luminous Efficacy (rated) (Nom)
104 lm/W
Color Rendering Index (Min)
-
Color Rendering Index (Nom)
92
Operating and electrical
Power (Nom)
315.9 W
Lamp Current Run-Up (Nom)
4.7 A
Ignition Supply Voltage (Max)
4000 V
Ignition Peak Voltage (Max)
4000 V
Ignition Supply Voltage (Min)
3000 V
Re-Ignition Time (Min) (Max)
10 min
Ignition Time (Max)
3 s
Voltage (Max)
115 V
Voltage (Min)
90 V
Voltage (Nom)
98 V
Controls and dimming
Run-Up Time 90% (Max)
3 min

Mechanical and housing
Bulb Finish
Clear
Overall Length (Max)
7.6 in
Bulb Shape
T12  [ 38 mm (T12)]
Approval and application
Picogram Per Lumen Hour
44.4 pg/lm.h
Mercury (Hg) Content (Max)
28 mg
Energy Consumption kWh/1000 h
346 kWh
UV
Pet (Niosh) (Nom)
241 h/500lx
Damage Factor D/fc (Nom)
0.17

Luminaire design requirements
Bulb Temperature (Max)
350 °C
Cap-Base Temperature (Nom)
250 °C
Cap-Base Temperature (Nom)-DUP
482 °F
Pinch Temperature (Max)
350 °C
Pinch Temperature (Max)-DUP
350 °C

Product data


Full product code
871869959215800
Order product name
GreenPowerCDM-TP 315W/T12/U/O GAV
EAN/UPC - Product
8718699592158
Order code
928493400030
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
928493400030
Net Weight (Piece)
0.200 g
Philips 315W CMH Lamp

MASTER Color CDM T12 ELITE 315W/942/U/O

Specifications

General information
Cap-Base
PGZX18.  [ PGZX18.]
Operating Position
UNIVERSAL  [ Any or Universal (U)]
Life to 5% Failures (Nom)
10000 h
Life To 10% Failures (Nom)
12000 h
Life to 50% Failures (Nom)
30000 h
ANSI Code HID
C182/O
Features
Protected (P)
Flux measurement reference
Sphere
Light technical
Color Code
942  [ CCT of 4200K]
Luminous Flux (Nom)
34300 lm
Luminous Flux (Rated) (Min)
31200 lm
Luminous Flux (Rated) (Nom)
34300 lm
Color Designation
Cool White (CW)
Lumen Maintenance 12000 h (Nom)
91 %
Lumen Maintenance 10000 h (Nom)
93 %
Lumen Maintenance 2000 h (Nom)
97 %
Lumen Maintenance 20000 h
80 %
Lumen Maintenance - 40% Life
95 %
Lumen Maintenance 5000 h (Nom)
96 %
Lumen Maintenance - 10% Life
97 %
Saturated Red (R9)
50
Design Mean Lumens
30780 lm
Chromaticity Coordinate X (Nom)
0.371
Chromaticity Coordinate Y (Nom)
0.366
Correlated Color Temperature (Nom)
4200 K
Luminous Efficacy (Rated) (Min)
99 lm/W
Luminous Efficacy (rated) (Nom)
109 lm/W
Color Rendering Index (Min)
87
Color Rendering Index (Nom)
93
Operating and electrical
Power (Nom)
315.9 W
Lamp Current Run-Up (Nom)
4.7 A
Ignition Supply Voltage (Max)
4000 V
Ignition Peak Voltage (Max)
4000 V
Ignition Supply Voltage (Min)
3000 V
Re-Ignition Time (Min) (Max)
10 min
Ignition Time (Max)
3 s
Voltage (Max)
115 V
Voltage (Min)
90 V
Voltage (Nom)
100 V
Controls and dimming
Dimmable
No
Run-Up Time 90% (Max)
3 min
Philips 315W CMH Lamp

Mechanical and housing
Bulb Finish
Clear
Overall Length (Max)
7.6 in
Bulb Shape
T12  [ 38 mm (T12)]
Approval and application
Energy Efficiency Class
F
Picogram Per Lumen Hour
39.0 pg/lm.h
Mercury (Hg) Content (Max)
25 mg
Energy Consumption kWh/1000 h
316 kWh
EPREL Registration Number
473302
UV
Pet (Niosh) (Nom)
26 h/500lx
Damage Factor D/fc (Nom)
0.20
