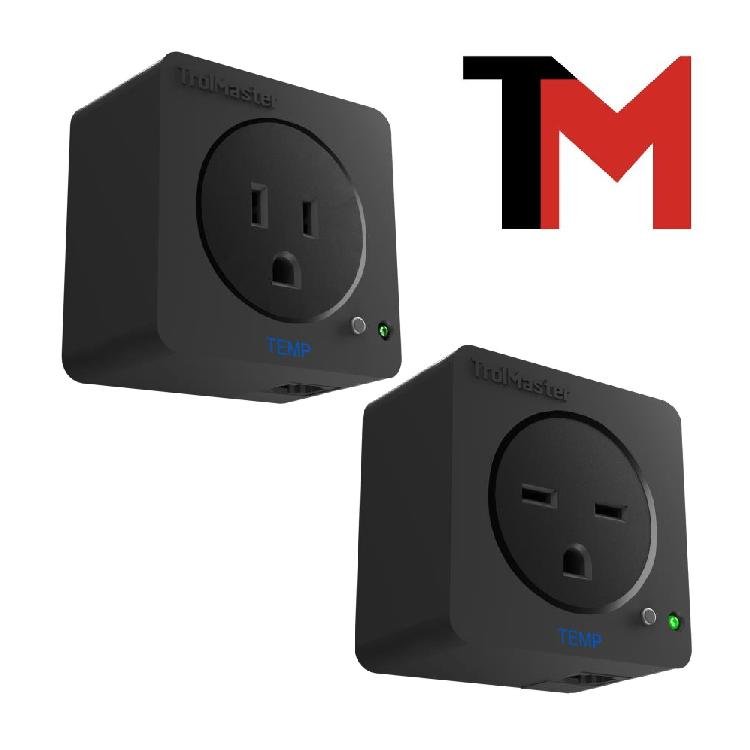

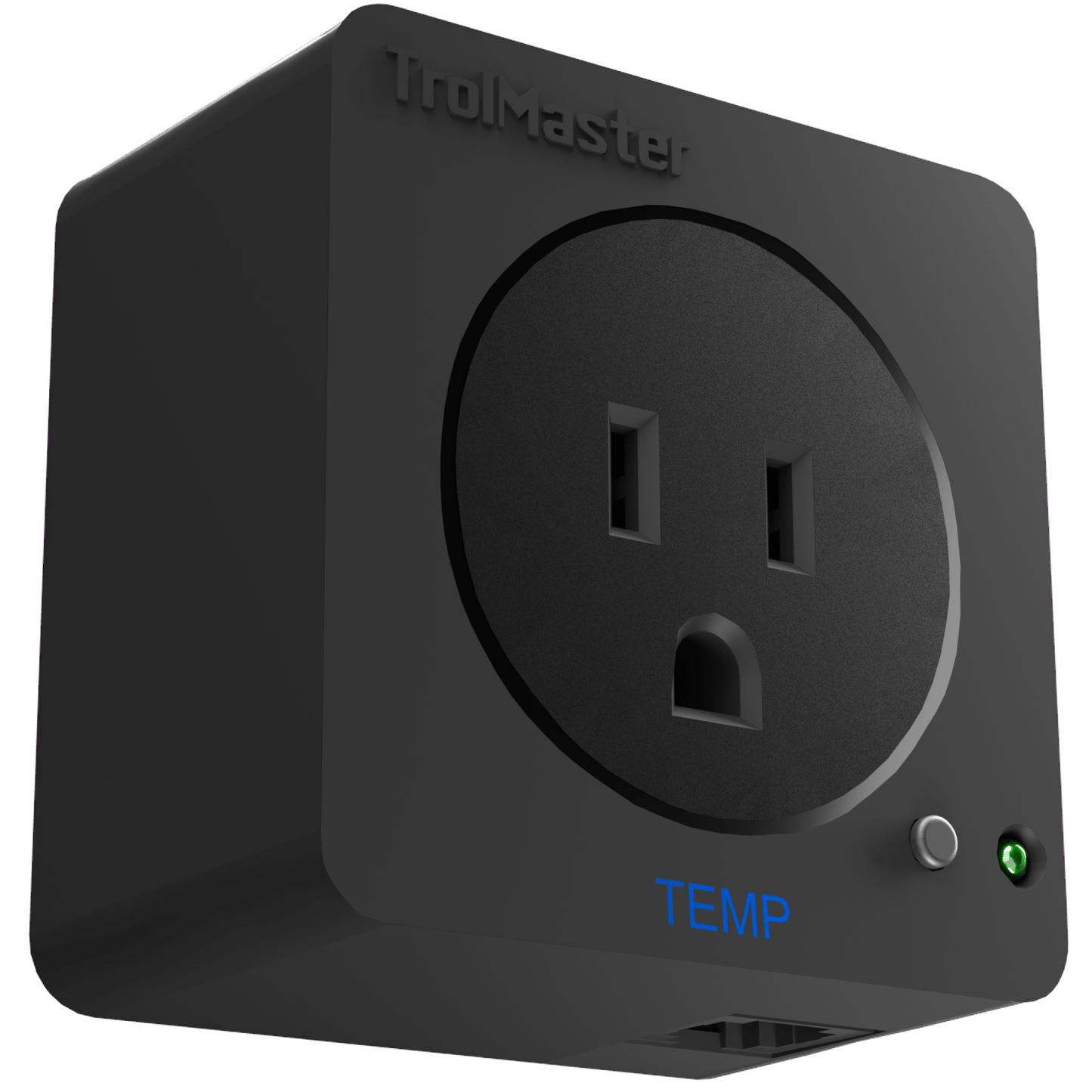

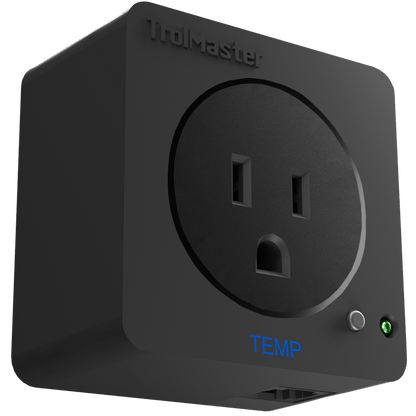

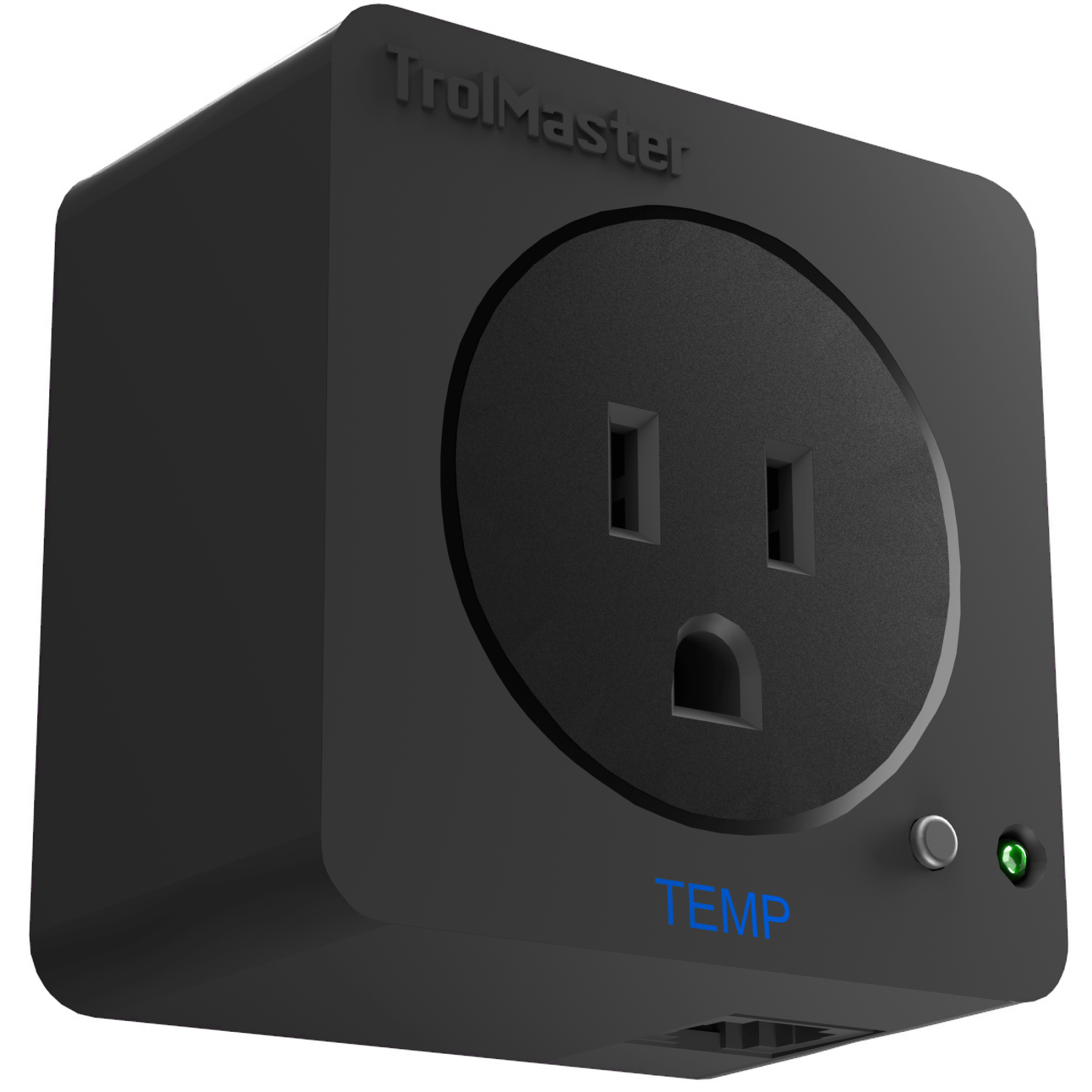

The TrolMaster Hydro-X Temperature Device Station modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. So, any heating or cooling device, 10-amps at 120 volts or less is controllable by the DST-1.

_{LED status:}

• FAST blinking green LED: Module not addressed to controller OR that module does not have a good connection to controller. And, pressing the small button on module will address and link module when first installed.
• SLOW blinking green LED: Module addressed and connected to controller, and module currently turned OFF.
• SOLID green LED (no blinking): Modules addressed, connected and currently turned ON.
• Blinking red LED: Module overloaded. To reset the overload unplug module from power.

Specifications

• Input Voltage:                              100~240 VAC, 50/60Hz
• Output Current:                           10A
• Output Voltage:                            100~240 VAC, 50/60Hz
• Working Environments:                 Temperature 32-122°F, Humidity=90%
• Package Dimensions:                    85mm(L) x 80mm(W) x 90mm(H)
• G.W. per pack:                             0.34kgs

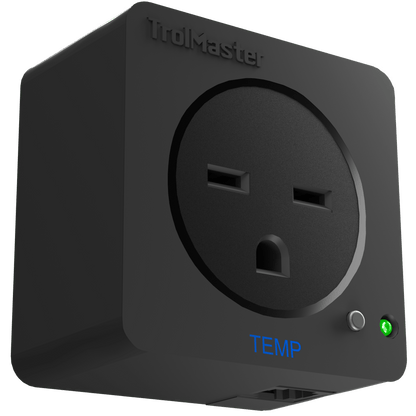

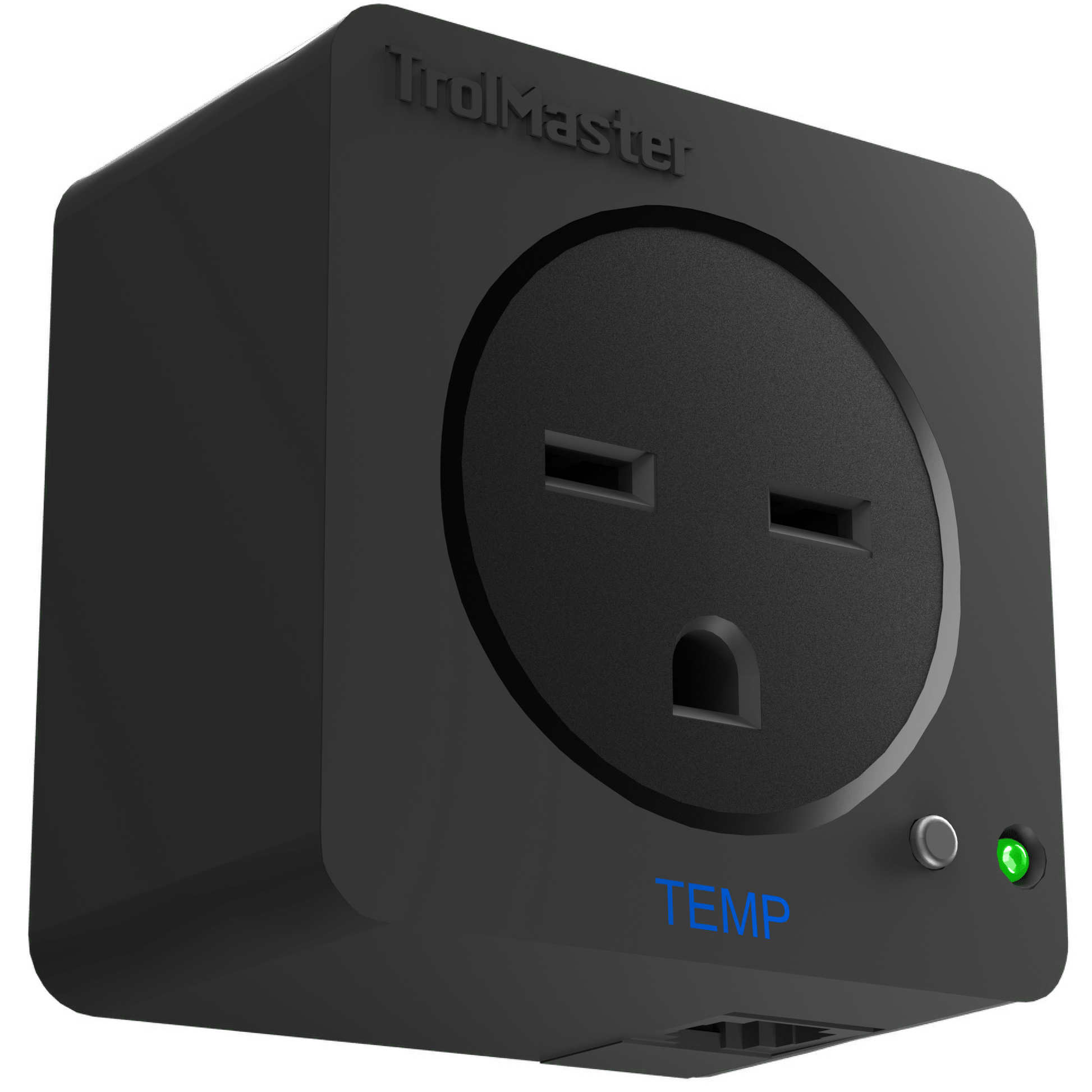

 Hydro-X Temperature Device Station 240V（DST-2）

The TrolMaster DST-2 Temperature Device Station allows the user to easily connect and control standard heating or cooling devices to the Hydro-x. So, any heating or cooling device, 10-amps @ 240 volts or less is controllable by the DST-2.

_{LED status}

• FAST blinking green LED: Module not addressed to controller OR that module does not have a good connection to controller. And, pressing the small button on module will address and link module when first installed.
• SLOW blinking green LED: Module addressed and connected to controller, and module currently turned OFF.
• SOLID green LED (no blinking): Modules addressed, connected and currently turned ON.
• Blinking red LED: Module overloaded. To reset the overload unplug module from power.

Specifications

• Input Voltage:                               240 VAC, 50/60Hz
• Output Current:                            10A
• Output Voltage:                            240 VAC, 50/60Hz
• Working Environments:                 Temperature 32-122°F, Humidity=90%
• Package Dimensions:                    85mm(L) x 80mm(W) x 90mm(H)
• G.W. per pack:                             0.34kgs
