Hydro-X Lighting Control Adaptor

TrolMaster’s Hydro-X Lighting Control Adaptor controls most horticultural lighting fixtures sold on the market today. Most light manufacturers provide ability to control lighting systems using low-volt control. Low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow Hydro-X to control lights using their low-volt control option.

Hydro-X Lighting Control Adapter, designed for daily light management systems. Having 2 separate lines allows user to create multiple lighting layouts (and dimming sequence) based on individual preferences. System can efficiently control lighting by running a schedule. With advanced functions like auto dimming, overheat shutdown, sunrise & sunset simulation.

Each lighting line MUST have a single wattage/type of fixture connected. You cannot mix fixtures with different wattages on same line interconnect wiring. 256 lights controlled on each line,  512 lights in total, like ThinkGrow Digital Ballasts. A lighting control adapter (signal converter) is available for controlling traditional lights with analog signal (0-10v), like Gavita etc. Because of limitation of analog signal, the system can control up to 40 traditional ballasts on each line, and 80 traditional ballasts in total on both lines.

 Features

• LED Power Indicator
•  Convert Digital Signal to Analog Signal
•  Seamless Connection with Hydro-X with RJ12 Cable
•  Plug & Play

Specifications

• Output Voltage:                                0~11.5V
• Maximum Current:                            0.2A
• Working Environments:                   Temperature 32-122°F, Humidity=90%
• Package Dimensions:                     156mm(L) x 83mm(W) x 30mm(H)
• G.W. per weight:                              0.05kgs

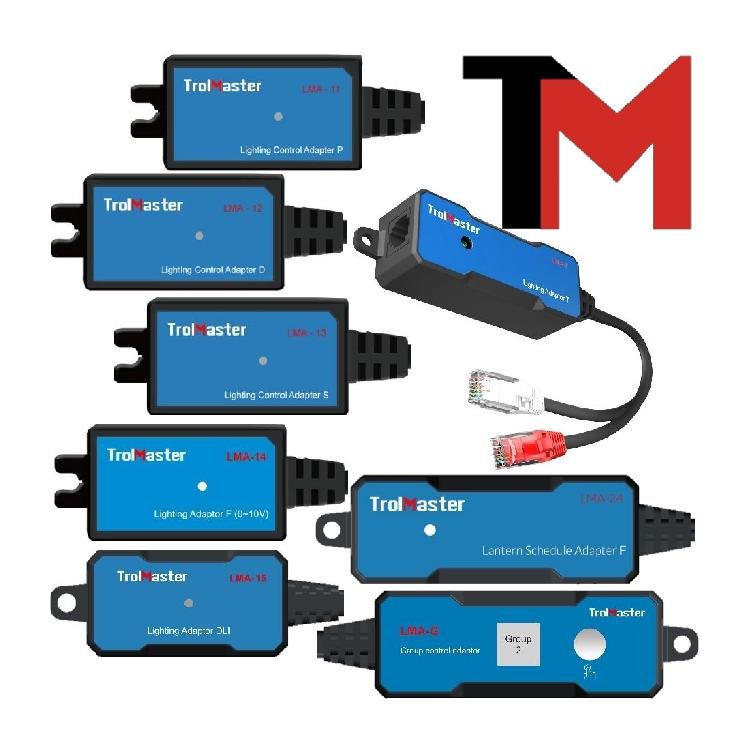

Adaptors

LMA-11 - Lighting Control Adapter P is specially designed for controlling P (Phantom) ballast.

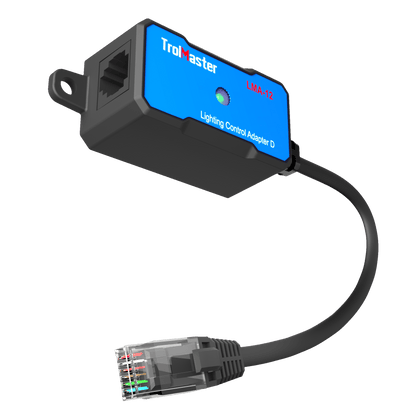

LMA-12 - Lighting Control Adapter D is specially designed for controlling D (Dimlux) ballast.

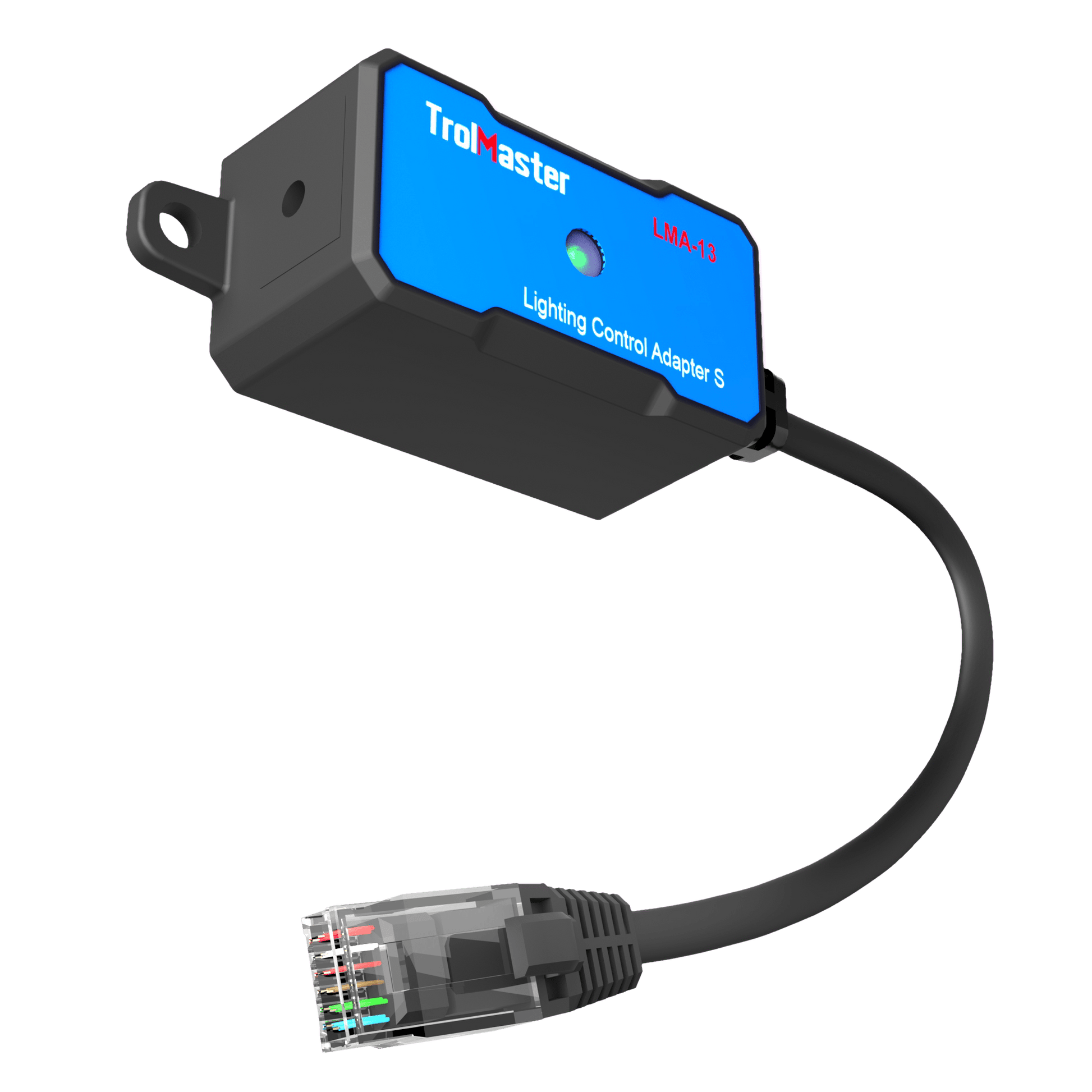

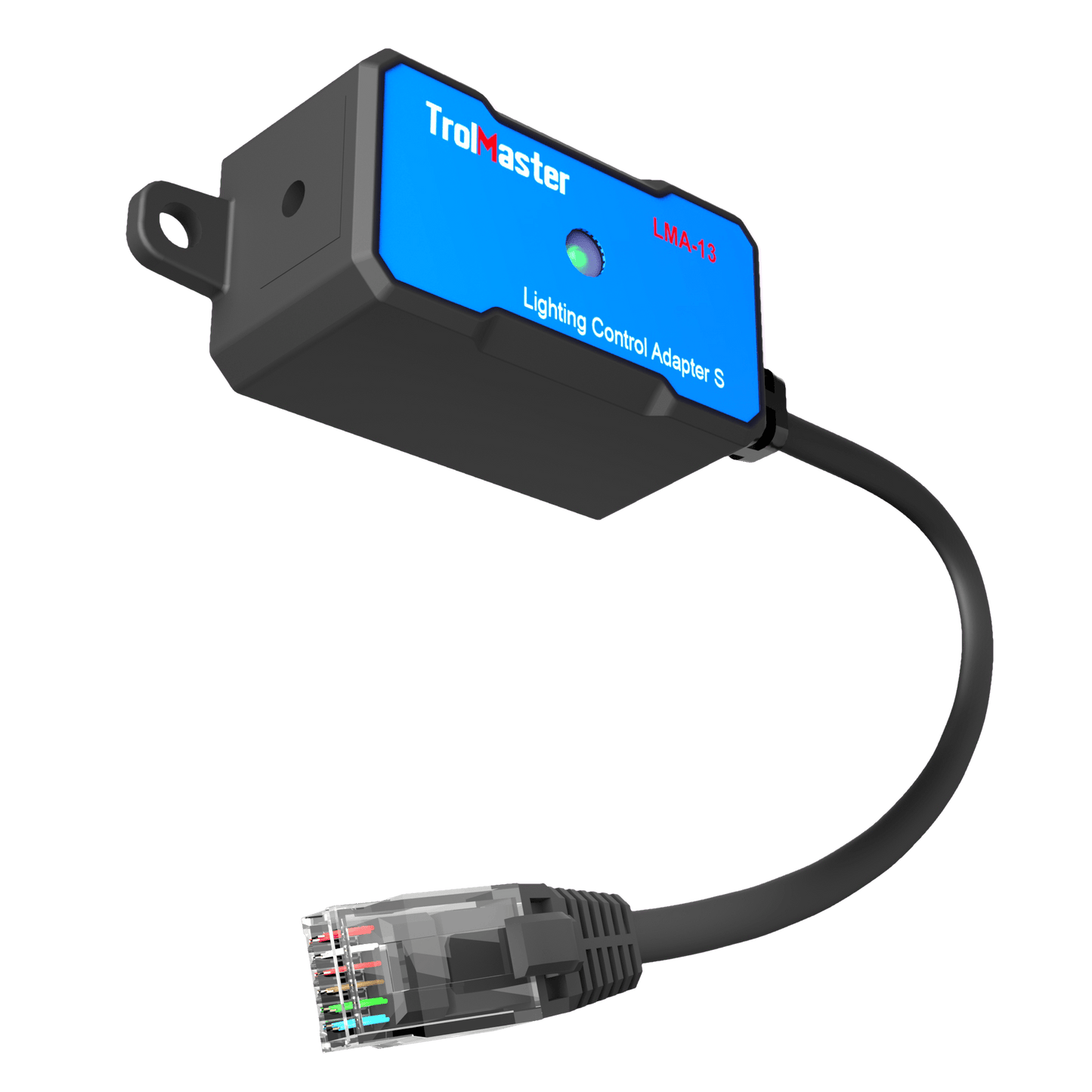

LMA-13 - Lighting Control Adapter S is specially designed for controlling Sunsystem ballast (except SunSystem LEC 630).

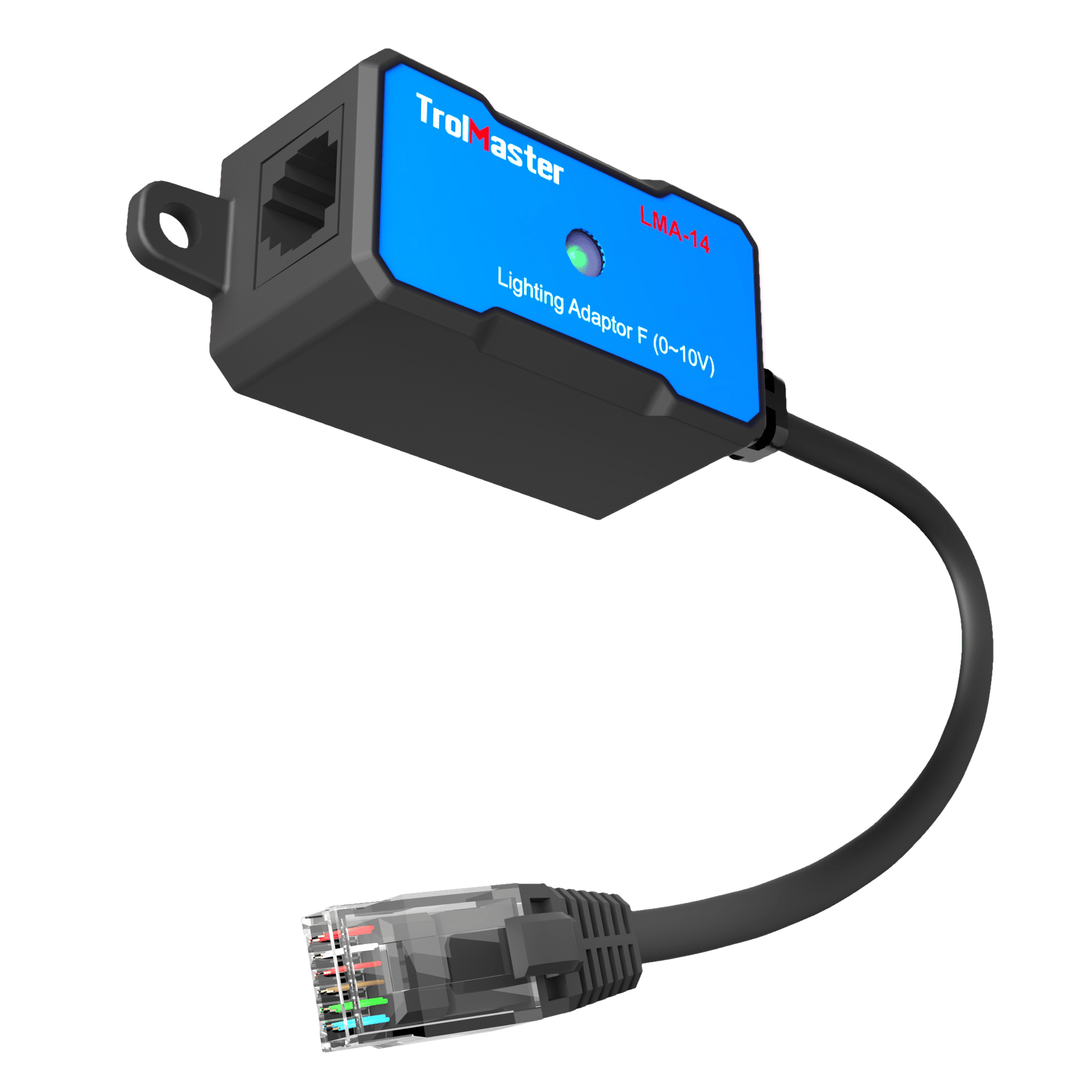

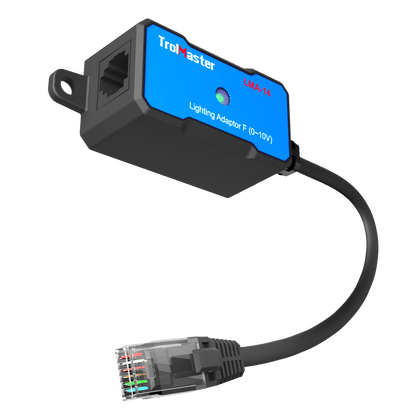

LMA-14 - Lighting Control Adapter F is specially designed to control HIDs like Protilux/Gavita/Nanolux/Luxx/Growers Choice/Illuminar/PL and LEDs like Protilux/Fluence/Next light/Photobio

      NOTE: Each LMA-14 controls up to 40 HID lights or 24 LEDs. Additional LMA-14 adapters used with SPH-1 to control as many lights as required.

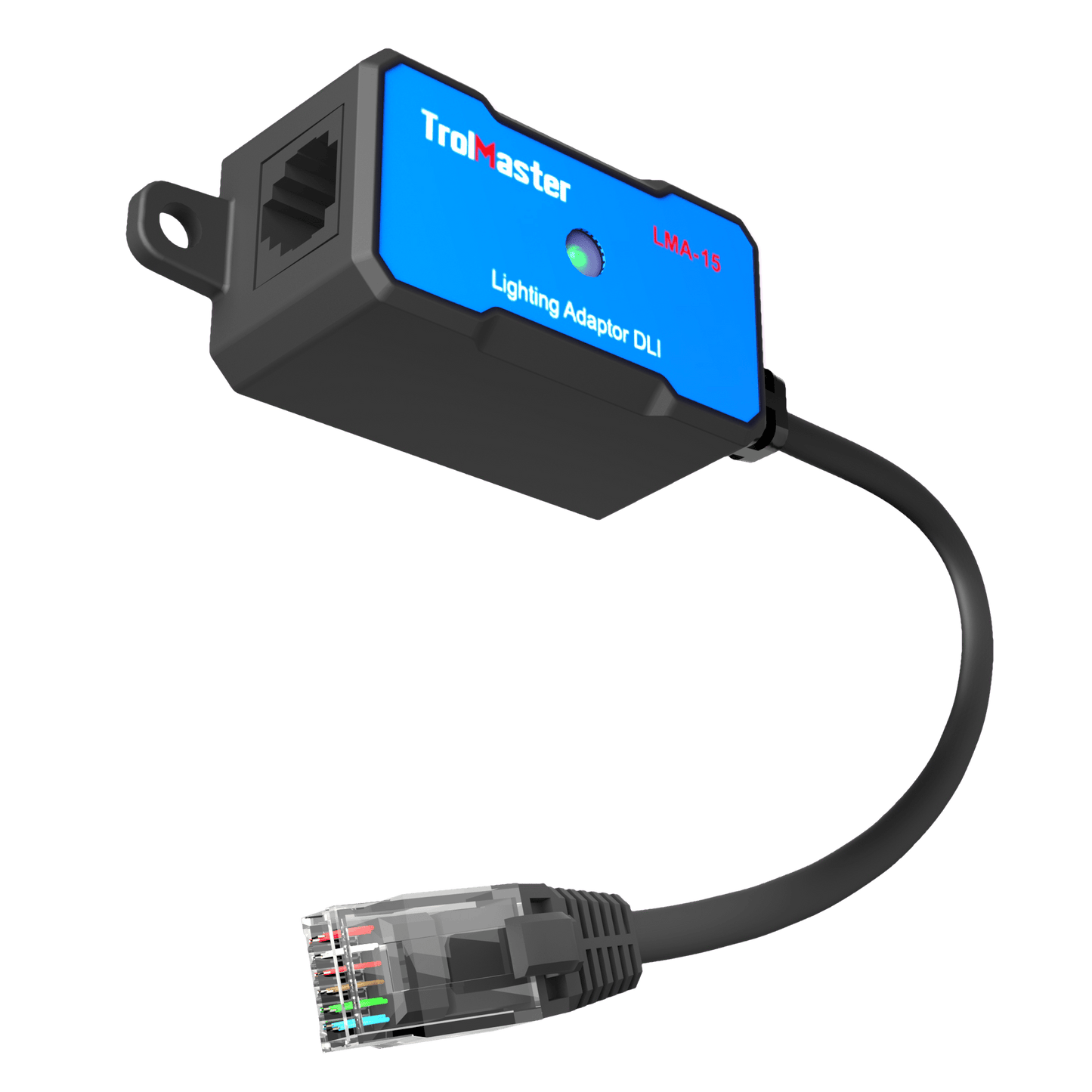

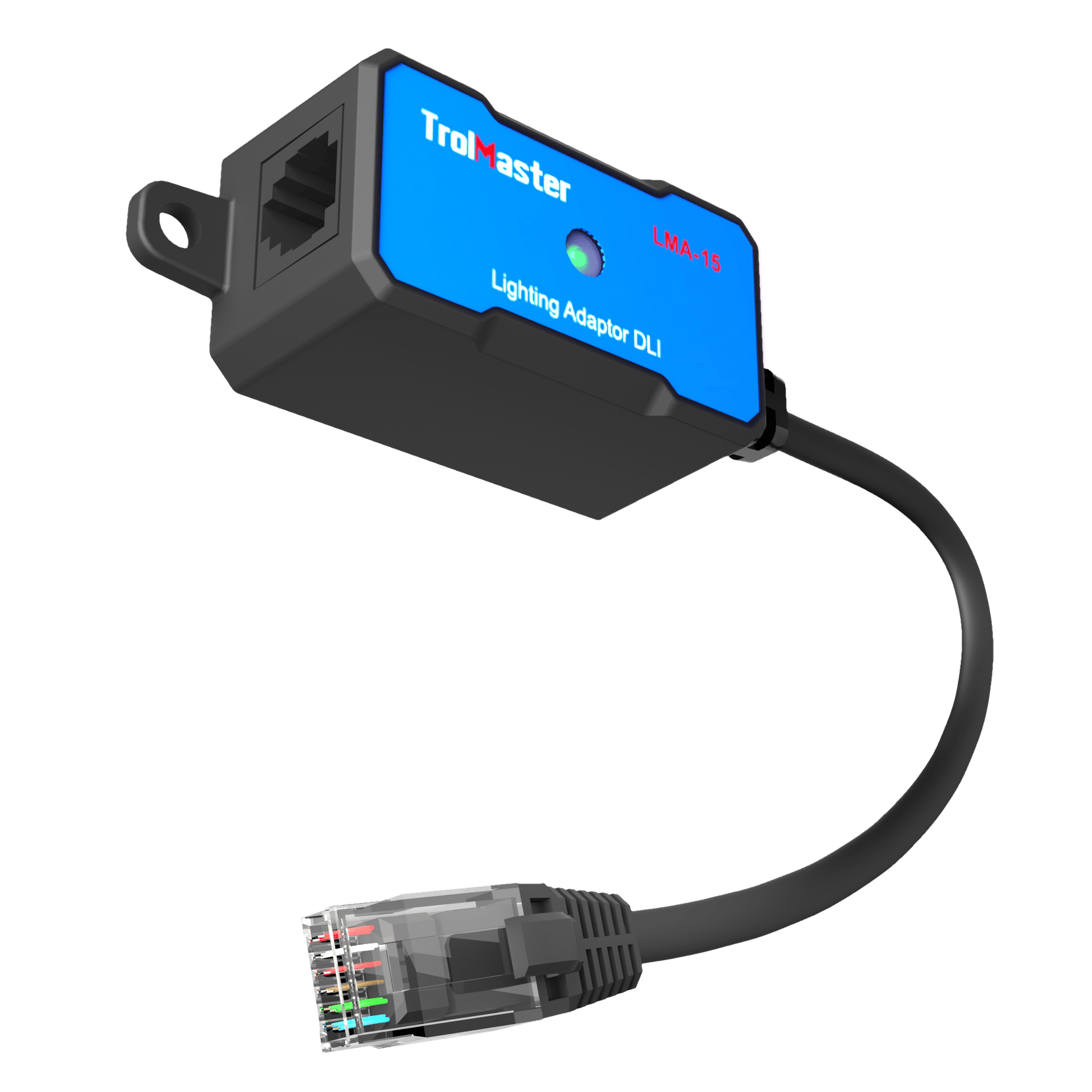

LMA-15 - Lighting Control Adapter DLI is specially designed to control the DLI fixtures.

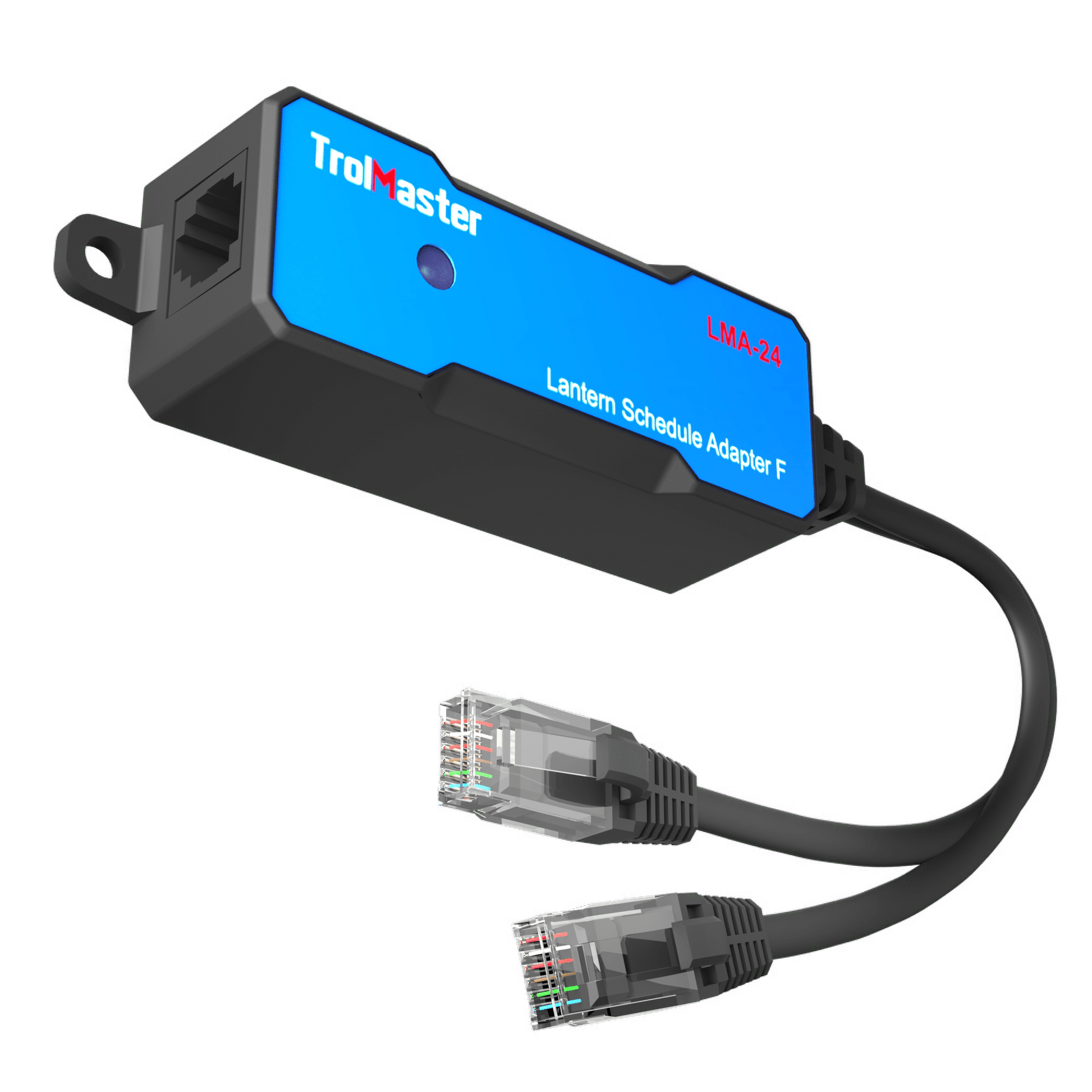

LMA-24 - Lantern Schedule Adapter F is specially designed to use both two channels on the Hydro-X system to create a lantern schedule control for any lights with 0-10V protocol. It is compatible with HIDs like Protilux/Gavita/Nanolux/Luxx/Growers Choice/Illuminar/PL and LEDs like Protilux/Fluence/Next light/Spectrum King.

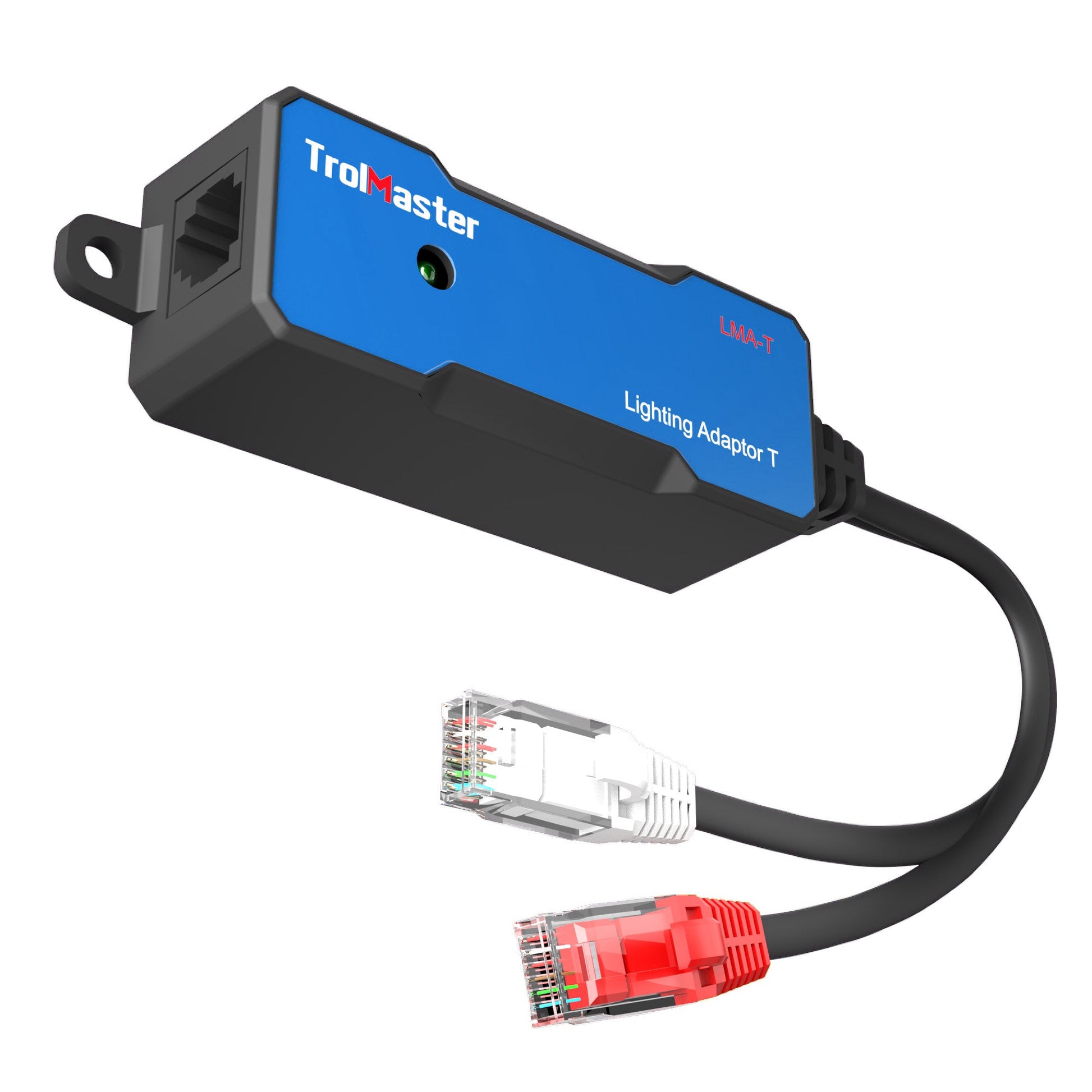

LMA-T - Lighting Control Adaptor T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full spectrum and second red output levels on the ThinkGrow LEDs.

The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. So user can set individual ON and OFF times, and dimming settings for full spectrum LEDs, and second red LEDs.

LMA-T connects RJ type lighting control cables where LEDs connect. Back to controller in a daisy-chain configuration using plug-and-play connections.

One adaptor runs up to 256 ThinkGrow LEDs.

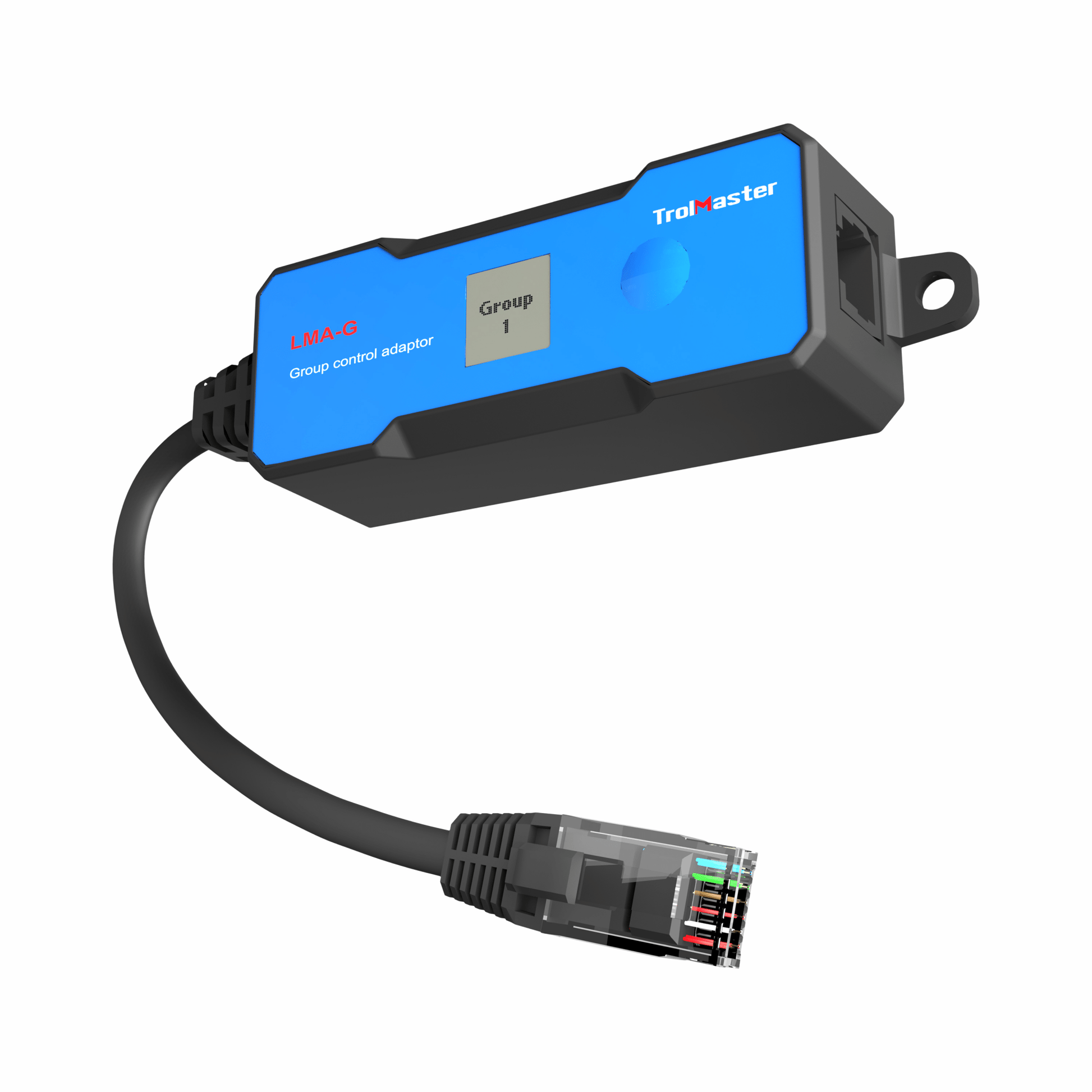

LMA-G Group Control Lighting Adaptor is specially designed for ThinkGrow Model-I and I Plus. The LMA-G connects with a lighting control adaptor to offer group control functions to grow lights. Each LMA-G can control one group of lights. Each light group requires one LMA-G.
