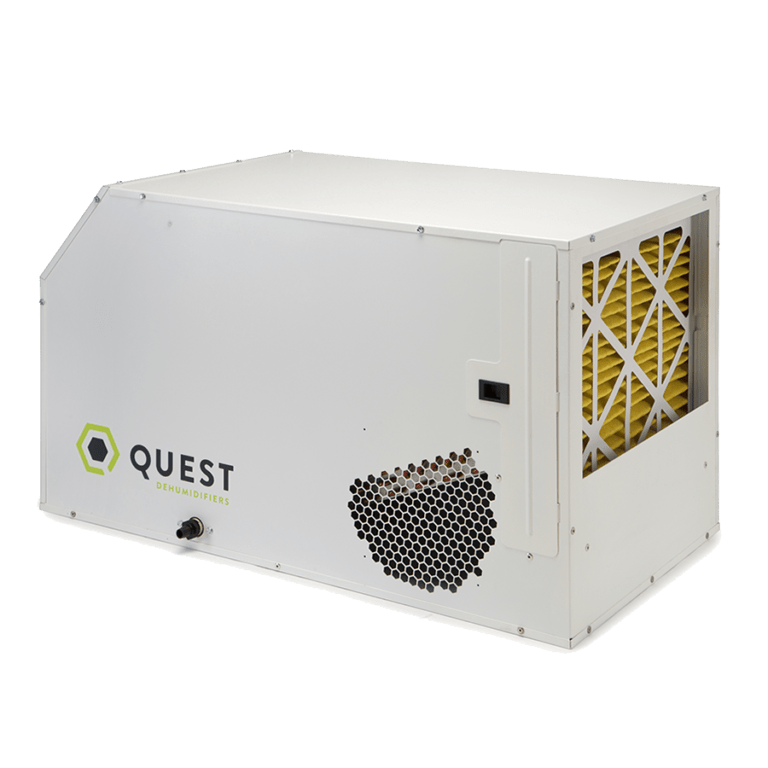

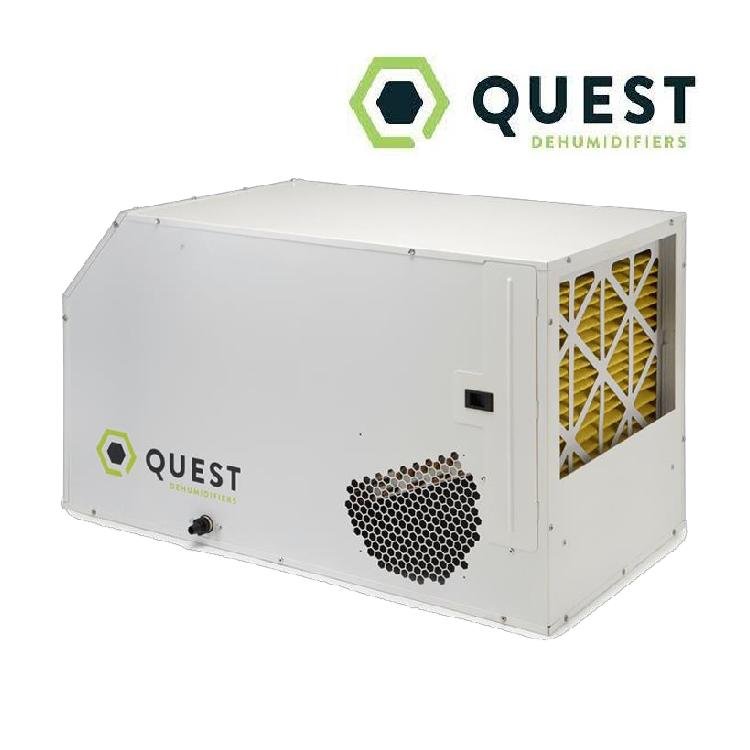

Quest Dual 155 Dehumidifier
Quest Dual 155 Dehumidifier
Couldn't load pickup availability
See Instore For Pricing & Availability
@ 80 F / 60% RH
Capacity 155 Pints/Day
Efficiency 7.3 Pints/kWh
Supply Voltage 110-120V
Current Draw 8 Amps
Quest Dual 155 Dehumidifier
OVERHEAD SERIES
OVERVIEW
The Quest Dual 155 is one of the most energy-efficient commercial dehumidifiers on the market today. Removing 155 pints of water per day, this unit can save you thousands in energy costs every year compared to the competition. It gives you the flexibility to hang the unit overhead or use ductwork and keep the dehumidifier in a different space entirely.
Like all Quest products, the Dual 155 Dehumidifier is Assembled in Madison, Wisconsin using the very best components and materials available.
KEY FEATURES
HIGH EFFICIENCY
- No dehumidifier is more efficient
INDUSTRY’S LOWEST AMP DRAW
- More efficient units have less heat output and free up electricity for other equipment
ONBOARD DEHUMIDISTAT
- Along with a low voltage terminal block
FEATURES
OVERHEAD OR GROUND PLACEMENT
- Built to fit what works for your space
PLUG-N-PLAY
- No installation required
WIDEST OPERATING RANGE
- Of temperature and relative humidity
UL RATED AND ETL LISTED
- The highest safety standard
LONG POWER CORD
- For extended reach
AUTO RESTART
- Unit automatically defaults to prior settings in the event of a power outage
MERV 11 FILTRATION
- Can remove harmful contaminants from the air such as dust, pollen and mold
SPECIFICATIONS
@ 80 F / 60% RH
Water Removal
- 155 Pints/Day
Efficiency
- 7.3 Pints/kWh
Energy Factor
- 3.5 Liters/kWh
Current Draw
- 8 Amps
Power
- 920 Watts
Total BTU's
- 10,500
Heat of Condensation (BTU's)
- 7,600
Motor Load (BTU's)
- 2,900
@ 75 F / 50% RH
Water Removal
116 Pints/Day
Efficiency
- 6.1 Pints/kWh
Energy Factor
- 2.9 Liters/kWh
Current Draw
- 7.1 Amps
Part Number
- 4031490
Dehumidifier Type
- Refrigerant Dehumidifier
CFM
- 391
Operating Temperature
- 56 F Min–95 F Max
Supply Voltage
- 110–120 VAC, 1 Phase, 60 Hz
Unit Dimensions
- 20.25″ W x 21.75″ H x 38″ L
Unit Weight
- 140 lb
Control Type
- Onboard controls with low voltage terminal block
Air Filter MERV Rating
- MERV 11
Air Filter Dimensions
- 16″ x 20″ x 2″
Power Cord
- 14ga NEMA 5-15P (10′)
Refrigerant Type
- R410A
Refrigerant Amount
- 1 lb 13 oz
Drain Port Connection
- 3/4″ Threaded NPT
Manufacturer Warranty
- 5 Year
INSTALLATION OPTIONS
FREESTANDING UNIT
HANGING KIT AVAILABLE
P-TRAP REQUIREMENTS
