The Aqua-X NFS-1 system is a professional-grade irrigation control system. It is a fully customizable modular designed system. Installation is simple and the system is easy to expand upon. The Aqua-X is designed to control up to 30 separate irrigation zones (24vac solenoid valves or 120vac pumps),  The Aqua-x monitors pH / EC and water temp as well as to monitor actual growing medium moisture levels by using up to (8) Water Content Sensors connected to a single Aqua-x controller. The timers can be set-up to be recycling timers, or to operate at specific time of day and durations. With the free TrolMaster App, the user can access all of the settings and alerts on the system from anywhere at anytime.

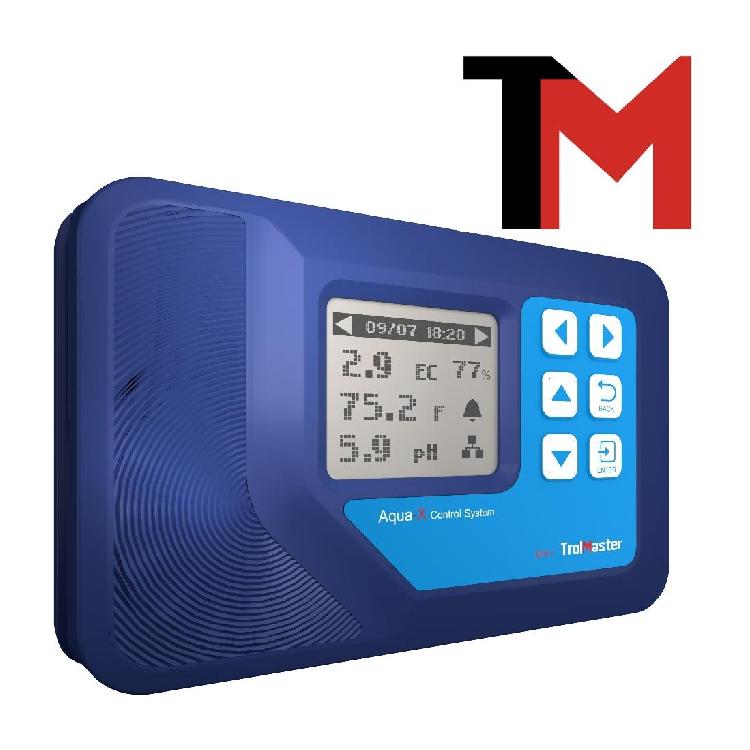

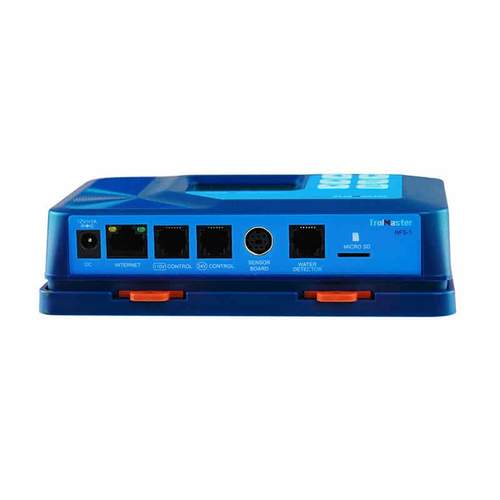

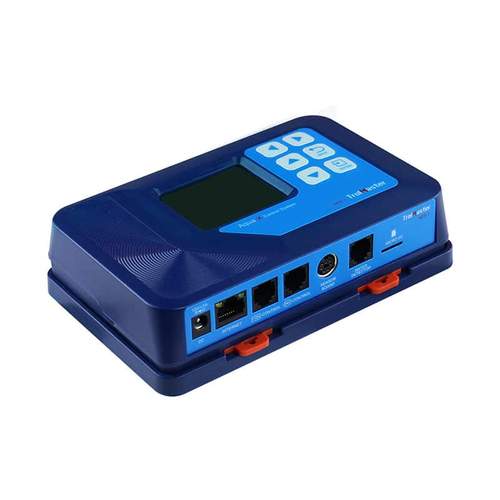

The NFS-1 is the brain of the Aqua-X system. It comes with a water detector WD-1 for leaking alert and watering confirmation.

*Internet Connection Note: TrolMaster's main controllers can be connected to the internet in order to use the available APP. Most internet services available including land-based and cellular internet are compatible. However, HughesNet / Viasat Satellite internet is NOT compatible with TrolMaster controllers at this time.

*Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.

Features

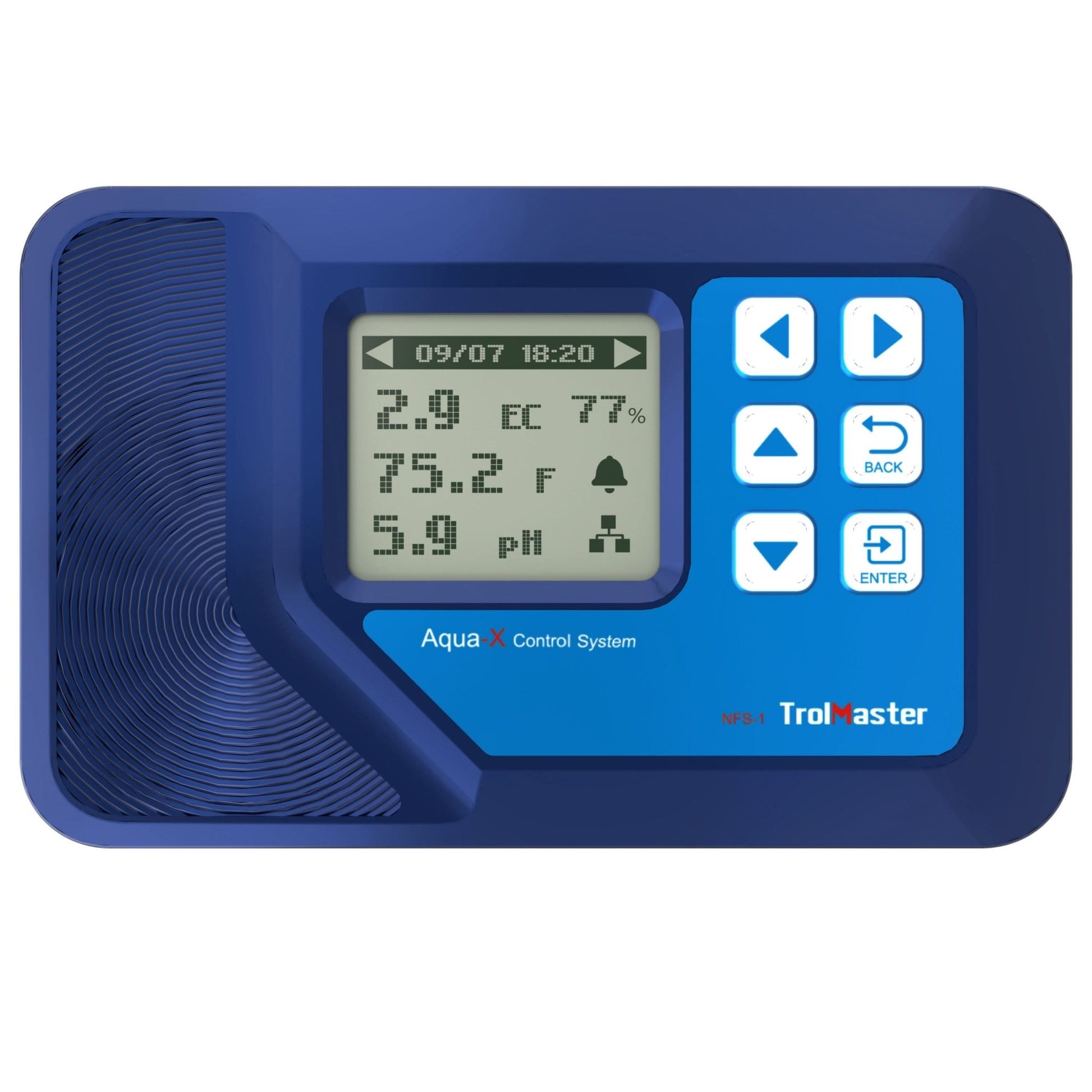

•  LCD Display, Easy Operation
•  Managing Multiple Rooms, Multiple Zones Delivery
•  Control up to 30 Outputs (24V or 110V)
•  pH, EC, Temp Monitoring
•  Free Smartphone App with Alerts & Historical Chart
•  Data Logging

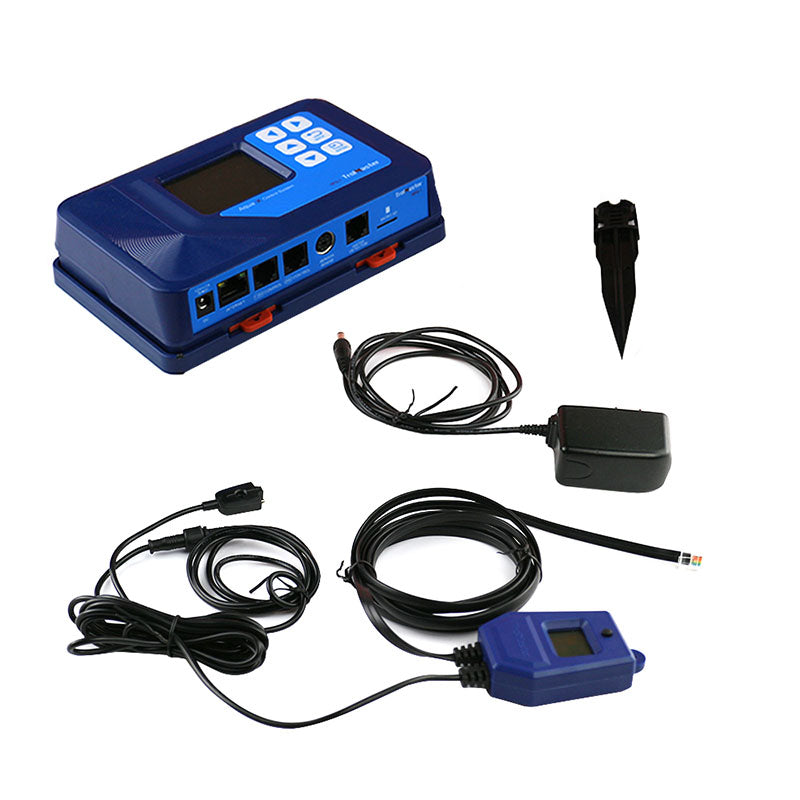

Includes

•   1 x Aqua-X Irrigation Controller
•   1 x Water Detector
•   1 x Touch Spot
•   1 x 12V Power Adapter

Specifications

• Input Voltage:                                            100-240 VAC, 50/60Hz
• OA6-24 24V Control Board:                          Max. 5pcs per set*
• OA6-110 110V Control Board:                       Max. 5pcs per set*
• DSP-1 Program Device Station:                     Max. 5pcs per set
• Water Detector:                                          Max. 30pcs per set
• Water Content Sensor:                                Max.  8pcs per set
• AMP-2 Sensor Board:                                   Max. 1pc per set
• PCT-1 or PCT-2 EC/Temp Sensor:                  Max. 1pc per set
• PPH-1 or PPH-2 pH Sensor:                          Max. 1pc per set

*NOTE:

Combination application is workable for OA6-24, OA6-110 & DSP-1, but the total quantity can not exceed 5pcs (up to 30 outputs).
