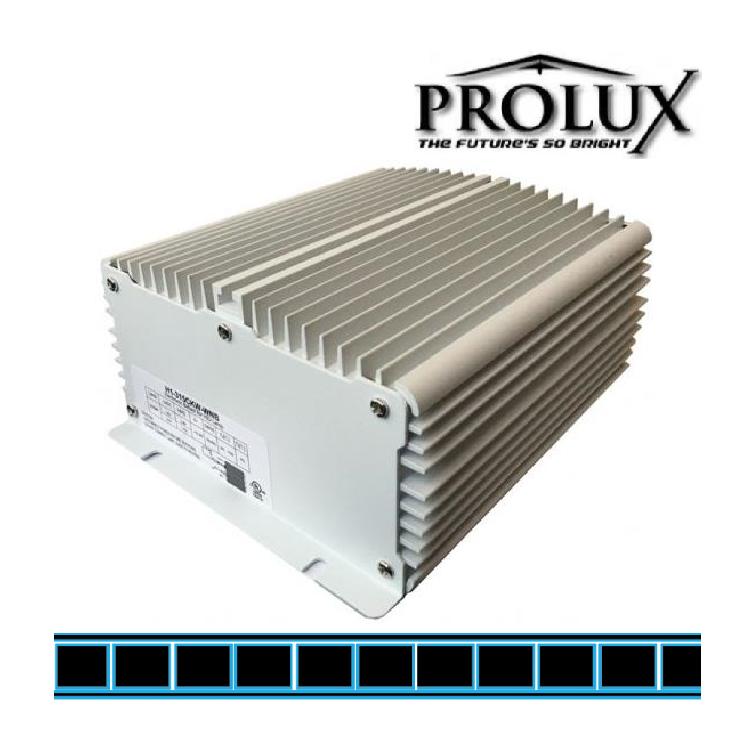

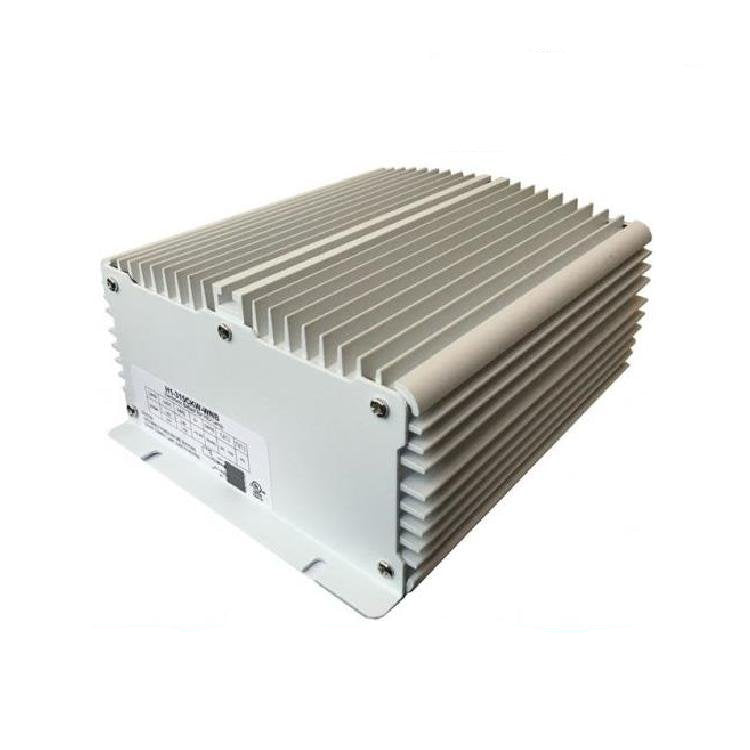

315w CMH Remote Ballast is designed to run 315W CMH lamps safely and effectively. UL listing and multiple ballast protections such as ignition failure protection offer safe usage for your indoor environment as well maximizing the PAR output of your Ceramic Metal Halide lamps.

The Ballast was made to have all the features and technology needed for optimal performance with none of the expensive frills in order to keep it priced as competitively as possible. Comes with a 120v power cord.

Ballast Specifications:

• Wattage: 315W
• Input Volt: 120V/240V
• Input Current: 2.89A / 1.42A
• Input Power: 343W
• Min Power Factor: .95
• THD: <15%
• Crest Factor: <1.7

Dimensions

Length 215mm / 8.46 in
Width 178mm / 7.01 in
Height 92.5mm / 3.64 in
Weight 3.0kg / 6.62lb lb

Protections

1. End of Life (EOL) Protection
2. Short circuit protection
3. Open circuit protection
4. Ignition failure protection
5. Thermal protection

Installation & Application Notes

1. Max allowable case temperature: 75 Degrees C / 167 Degrees F
2. Ambient Temperature: -20, +55 Deg. C / -4, +131 Deg. F
3. Max. Humidity: 95%
4. Ignition voltage is 5kV

Performance Requirements:

• Rated mains voltage: 120-240V
• Voltage range: (+/-10%): 108-264V
• Mains frequency: 50/60 hz
• Operation Frequency: 140-220kHz

315W CMH Lamp 3100k

Prolux 315W CMH Lamp 3,100K provides the superior light quality and color spectrum your plants need, making it one of the best 3100K bulbs on the planet. They are designed and optimized to work with a Protilux electronic ballast to drive the highest performance and sustainability. Otherwise, you'll see a decrease in efficiency, reliability, and longevity. Here are some of the reasons we love this bulb.
